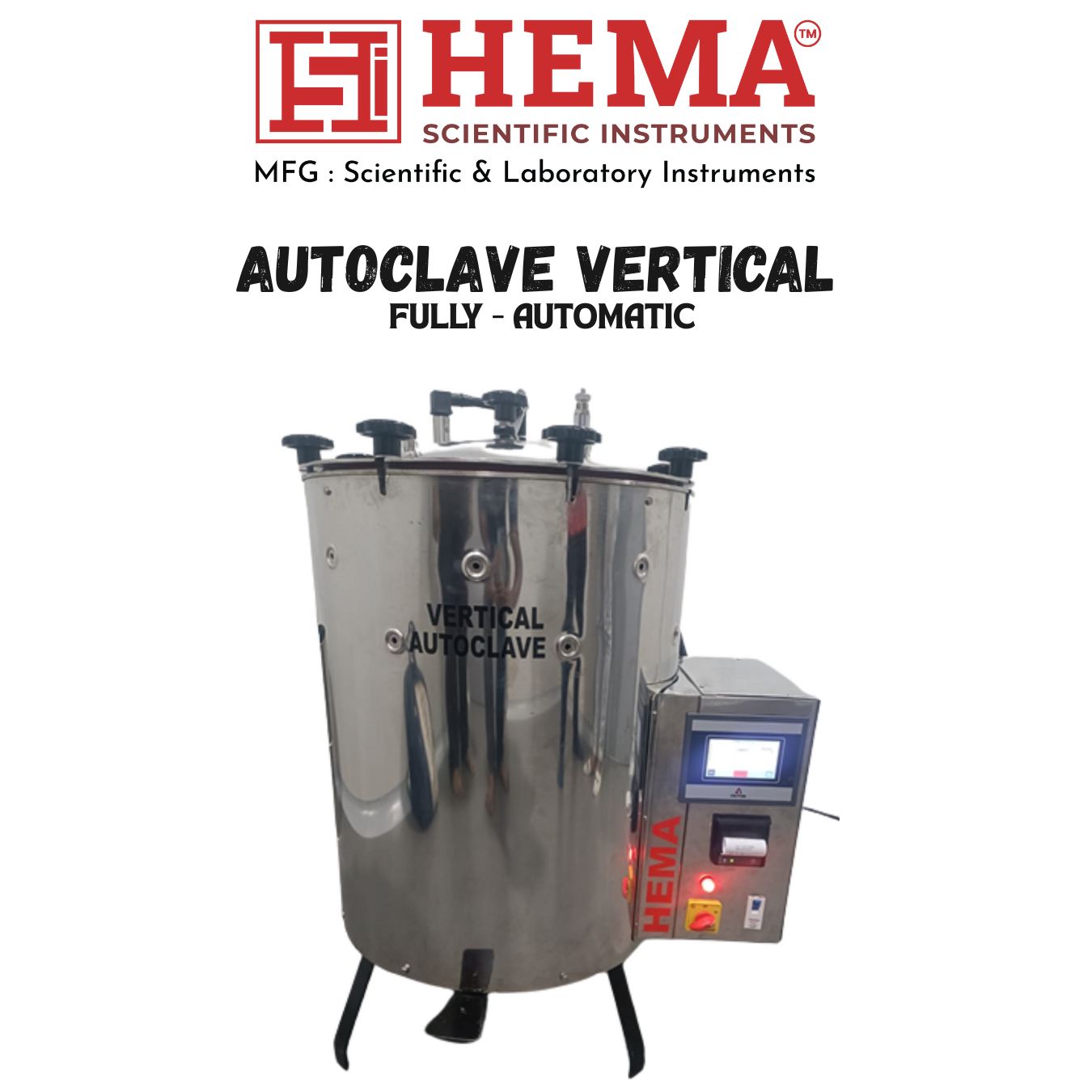

Vertical Autoclave Fully Automatic | Steam Sterilizer

A Vertical Autoclave – Fully Automatic is an advanced sterilization solution designed for laboratories, hospitals, pharmaceutical units, and research institutes that require safe, consistent, and automated steam sterilization. With precise control over temperature, pressure, and cycle time, fully automatic vertical autoclaves ensure complete elimination of microorganisms. Hema Scientific Instruments, a leading vertical autoclave manufacturer in India, offers high-performance fully automatic vertical autoclaves built for reliability, safety, and long service life.

A fully automatic vertical autoclave is a top-loading steam sterilizer that uses saturated steam under pressure to sterilize laboratory instruments, glassware, culture media, dressings, and medical equipment. The fully automatic system manages heating, sterilization, pressure release, and cycle completion with minimal operator intervention.

Hema Scientific Instruments designs laboratory vertical autoclaves that comply with standard sterilization protocols and are suitable for continuous professional use.

• Vertical Autoclave Widely used in microbiology, medicine, Waste treatment, Pharma QC / AQ / R & D and all applications requiring sterilization.

• Double Walled construction with inner chamber (boiler) made of stainless steel 16SWG sheet – 304 Grade and outer stainless steel sheet – 304 grade, mirror polish.

• The Boiler and outer shell is provided with air insulation.

• Lid is made of die pressed Thick Stainless steel plate & is required with pressure gauge, steam release / Exhaust valve & spring loaded safety valve & ¼’’ BSP port fitted with coupling for validation purpose.

• Foot lifting arrangement for the lid.

• Fully argon welded to avoid steam and pressure leakage.

• Heavy Duty industrial flange Heaters.

• Full Sterilization cycle including air purging, sterilizing hold time, Cycle end with release/ exhaust of pressure & alarm is automatic.

• Microprocessor based controller with time and temperature programmable by user.

• Low water level alarm with heater cut off.

• Perforated basket made of stainless steel sheet – 304 grade.

• Operates on 230 Volts AC single phase 50 Hz.

• Timer Range: 1-99 Minutes.

• Temperature Sensor: PT – 100.

• Temperature Range: 121°C to 125°C.

• Temperature Resolution: 0.1°C

• Pressure Range: 15 PSI to 20 PSI., Factory Set at 15 PSI.

Our fully automatic vertical autoclaves are engineered with advanced automation and safety features:

Fully automatic sterilization cycles
Digital microprocessor-based controller
Automatic pressure and temperature control
Stainless steel inner chamber (SS 304 / SS 316 optional)
Automatic water level control
Safety valve and pressure release mechanism
Audio-visual cycle completion alert
Heavy-duty lid locking system

These features ensure safe operation, consistent sterilization, and user convenience.

Hema’s vertical autoclave for laboratory use is widely used in:

Microbiology and pathology laboratories
Pharmaceutical and biotechnology industries
Hospitals and healthcare facilities
Research and development laboratories
Medical colleges and universities
Quality control and testing laboratories

It is ideal for sterilizing culture media, laboratory glassware, surgical instruments, linen, and bio-medical waste.

Hema Scientific Instruments is a trusted manufacturer and exporter of laboratory and scientific equipment in India, offering a wide range of products including Autoclaves, Hot Air Ovens, BOD Incubators, Muffle Furnaces, Stability Chambers, and Water Baths.

Our Vertical Autoclaves are designed as per ISO and GMP standards, ensuring precision, safety, and durability for every application.

Key Benefits:
